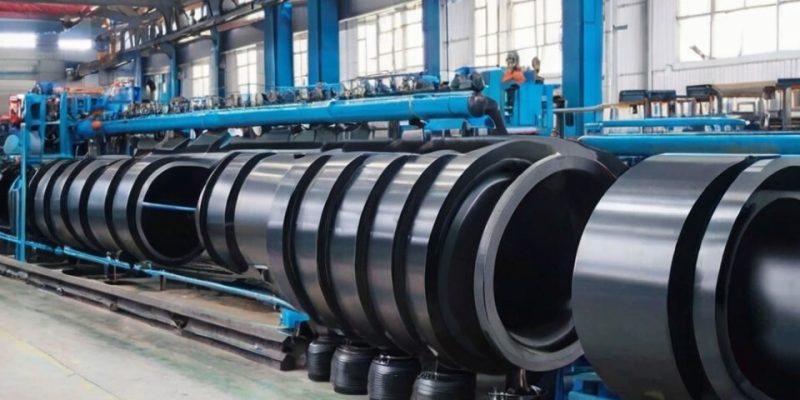

The Manufacturing Process of High-Quality HDPE Pipes

Introduction:

HDPE piping is characterized by its strength, flexibility, and extraordinary resistance to corrosion, which has led it to be used in applications for water transfer, gas pipes, sewerage systems, and much more.

HDPE pipes of superior quality are produced using a detailed manufacturing process that can result in high-cost components while also including various technology techniques in place for the production processes with excellent quality management processes that follow.

In this post, we will discuss the multiple stages involved in the HDPE Pipe Manufacturing Process, right from the selection of raw material to final quality testing.

Raw Material Selection and Preparation

The first step to manufacturing is choosing the highest quality raw materials. The primary feed material is HDPE resins, which are selected based on the required properties of the finished pipe. What pipes are composed of (high-quality resins providing good strength, flexibility, and resistance to weathering).

After its selection, the resin is usually treated with additives to improve some properties. Some additives include stabilizers for better UV resistance, pigments that color the pipes (generally in blue for potable water, yellow for gas, and black or grey for generic), and antioxidants to increase lifetime.

Extrusion Process

The most significant process in HDPE pipe production is extrusion. The composition is loaded into an extruder, a machine that melts and shapes the mixture to create a continuous pipe.

• Heating and Melting:

The resin blends get heated incrementally in a series of temperature-controlled zones within the extruder. The resin melts into a tar-like and sticky fluid that is easy to mold. Too much heat is a concern, as this would cause the resin to break down; too little, however, could offer an inconsistent number of layers inside the thickness of the pipe wall.

• Forming the Pipe:

The molten material is then pushed through a round die, which determines the pipe size and thickness. Manufacturers can make pipes with various diameters and sizes depending on the app they are intended for.

• Calibration:

After it leaves the die, the melted HDPE passes a sizing sleeve to ensure the pipe’s exact diameter and wall thickness. Next, the pipe passes through a vacuum calibration tank where the poured HDPE is rapidly cooled and solidified by convection and conduction, allowing it to maintain shape and size.

This is important as the HDPE pipe fittings must be calibrated to ensure they have the required diameter, wall thickness, and roundness provided by industrial standards following production, impacting performance and longevity.

Cooling Process

The cooling phase is critical for the rigidity of HDPE pipes. Following the calibration tank, the pipe enters a water cooling bath, where it is immersed in cold water. Cooling must be slow and controlled so as not to stress the pipe material.

Usually, the cooling of HDPE pipe fittings takes place in several stages where temperature gradually decreases. This cooling naturally allows the pipe to transmute solidly, ensuring a crystalline uniform structure without internal tensions.

Marking and Quality Control

Once the pipe is cooled, it goes through a marking and inspection process to ensure it meets industry standards and customer specifications. Therefore, marking is a crucial stage for identification and traceability. The pipes are marked with info like the following:

• Manufacturer name
• Pipe size and thickness
• Material specification (for instance, PE100 for superior quality of HDPE)
• Date and number of batch production
• Pressure rating and applicable industry certifications

Cutting and Finishing

After checking the HDPE pipe has passed the quality control, it will be cut by its length depending on the customer’s requirements. The cutting is usually performed using automated saws or rotary cutters to produce accurate cuts with good edges.

Smooth pipe ends are critical to joint integrity, especially when pipes will be joined using methods such as butt fusion or electrofusion, which require a flush fit for making leak-free seals. In some situations, pipes are also treated for extra protection, which depends on the purpose of using a pipe.

Final Inspection and Packaging

The HDPE pipes will be subjected to a Final Inspection after cutting and finishing to verify all markings, dimensions, and finish are acceptable. At this time, each pipe is visually inspected and measured to ensure that it conforms to the specifications..

The pipes must be protected from damage during storage and transport using a packaging solution. You may also bundle small pipes together, and with larger pipes, one generally stacks them to minimize pressure points.

Environmental Considerations and Sustainability

HDPE pipe manufacturing process also incorporates sustainable practices to minimize environmental impact. Moreover, the HDPE pipes are eco-friendly as they are 100% recyclable at the end of their life.

The longevity and leak-proof nature of these pipes ensure a longer lifespan and help enhance environmental sustainability by decreasing the frequency of replacements and avoiding water loss within distribution systems.

Conclusion

High-quality HDPE pipe fittings are produced via a multi-step process that includes specifying the types of raw materials, particular extrusion procedures, cooling these pipes to uphold their shape and functional flexibility, quality brushing out, and checking along with packaging.

These can be done in various steps that ensure that the potential product will not only pass critical industry tests but also deliver on expectations for durability, flexibility, and reliability.
